772000

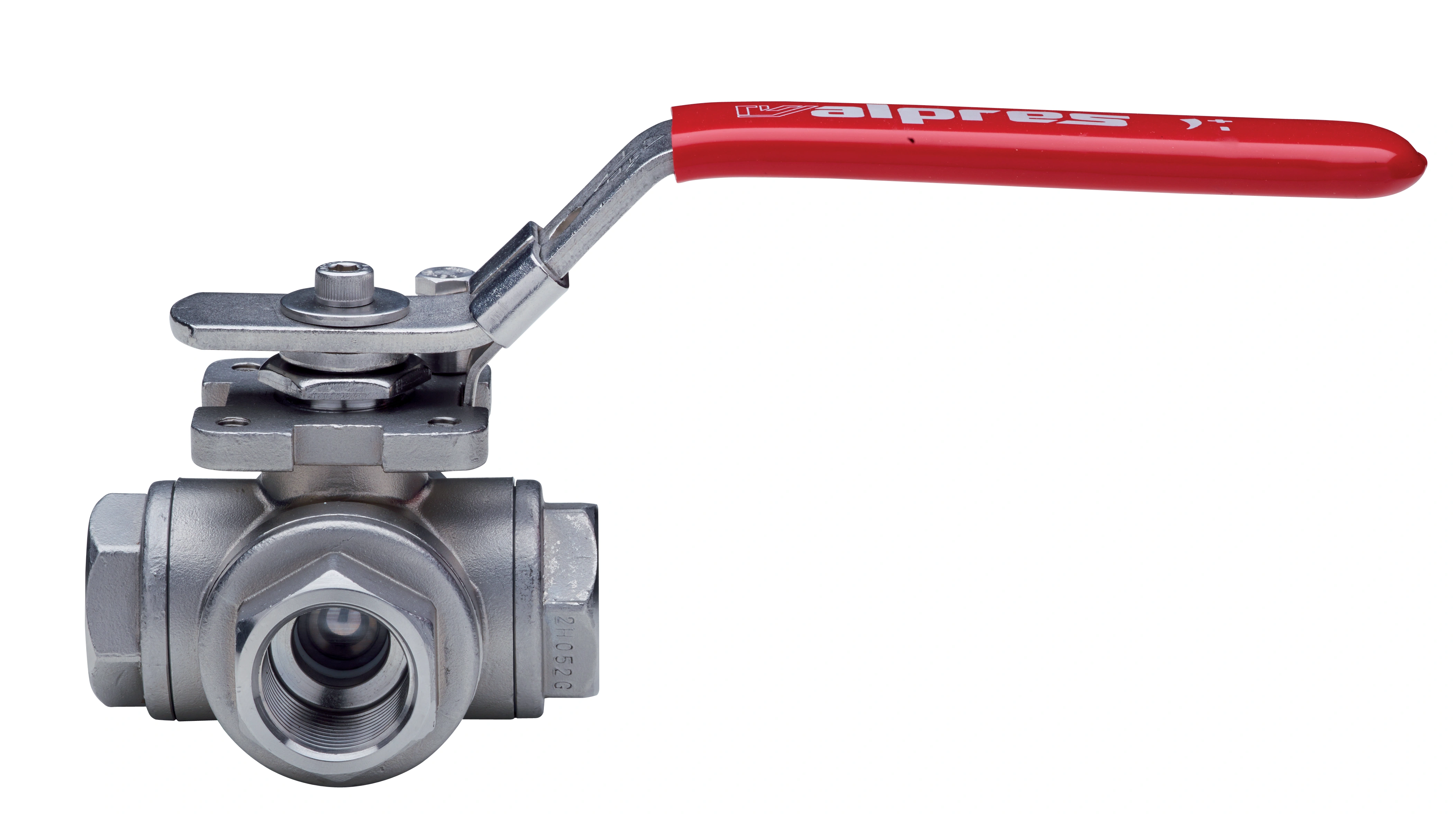

Series 772000 Three Way Reduced Bore T-Port Stainless Steel Ball Valve Ultravalve supplies the Series 772000 three way reduced bore stainless steel ball valve for reliable multi directional flow control in compatible industrial systems. Manufactured with an A351-CF8M stainless steel body and end connections, A351-CF8M ball and PTFE sealing components, the Series 772000 uses a T-port configuration for process pipework applications requiring flexible flow routing when correctly specified and installed. Dependable T-Port Flow Control for Process Systems Ultravalve’s Midlands based warehouse offers a wide range of 3 way stainless steel ball valves from stock, subject to configuration and current availability. Designed to support maintenance upgrades, process flow routing and general industrial pipework, these valves help provide fast replacement options for multi-port isolation and diversion requirements. T-Port Flow Path: The T-port configuration supports versatile multi-directional flow routing, including suitable mixing or diversion duties where the system design allows. Reduced Bore Design: The reduced bore construction provides compact three way flow control for compatible industrial pipelines. Robust Stainless Steel Construction: Manufactured with an A351-CF8M stainless steel body and three end connections, with an A351-CF8M ball, A479-TP316 stem and A182-F304 handle components. Four Seat Sealing Design: Uses four PTFE ball seats with additional PTFE sealing components to support dependable internal flow redirection. Threaded Connection Standard: Supplied with female UNI ISO 228/1 G threaded connections for integration into compatible pipework systems. Defined Pressure & Size Range: Available from DN8 to DN50, with a PN63 pressure rating across the size range. Temperature & Vacuum Capability: The temperature range is -20°C to +160°C, with 10⁻³ torr vacuum capability. With over 30 years’ experience and an ISO 9001:2015 certified quality management system, Ultravalve provides dependable valve solutions for UK industry. The Series 772000 three way T-port stainless steel ball valve is available to order, with delivery options confirmed at quotation. Contact our team for technical advice, current availability or to request a quote.
