761030

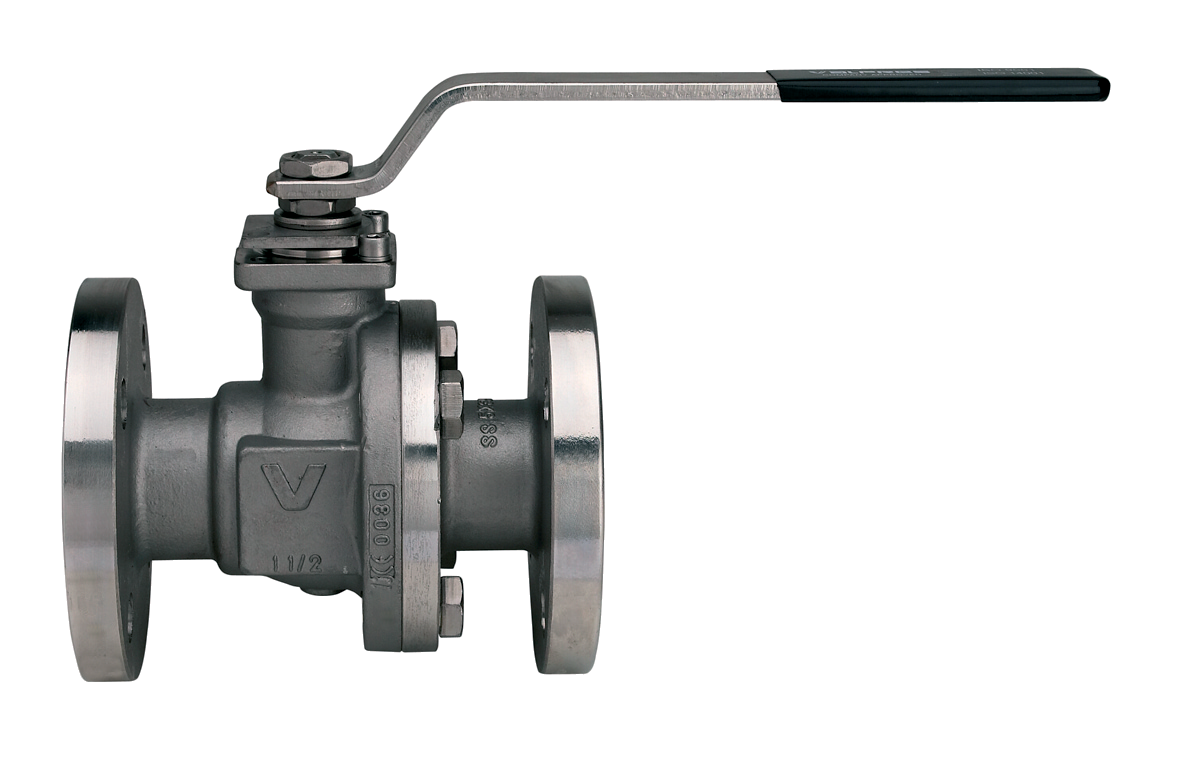

Series 761030 Stainless Steel Split-Body Full Bore Ball Valve Ultravalve supplies the Series 761030 split-body full bore stainless steel ball valve for reliable manual on/off flow isolation in ANSI 300 industrial systems. Manufactured with an A351-CF8M stainless steel body and end connection, A479-TP316 / A351-CF8M ball, glass filled PTFE ball seats, Fire-Safe construction and an antistatic device, the Series 761030 is designed for compatible general fluid handling, chemical, process and plant maintenance applications when correctly specified and installed. Dependable ANSI 300 Full Bore Isolation for Process Systems Ultravalve’s Midlands based warehouse offers a wide range of ANSI 300 flanged ball valves from stock, subject to configuration and current availability. Designed to support process maintenance and industrial pipework upgrades, these valves help provide robust replacement options for full bore flanged isolation requirements. Full Bore Performance: The full bore design helps support high flow capacity and reduced restriction across compatible industrial pipelines. Robust Stainless Steel Construction: Manufactured with an A351-CF8M stainless steel body and end connection, A479-TP316 / A351-CF8M ball, A479-TP316 / 17-4-PH stem, PTFE + fiberglass ball seats, FKM O-rings and Graphoil sealing. Fire-Safe & Antistatic Design: Features Fire-Safe construction and an antistatic device for correctly specified industrial and critical-service applications. Defined Pressure & Size Range: Available in DN15, DN20, DN25, DN40, DN50, DN80, DN100, DN150 and DN200. DN15 to DN150 are PN50, while DN200 is PN25. Trunnion Large Size Version: The DN200 version uses a trunnion design with Δp = 25 bar. Flanged Installation Standard: Supplied as a flanged valve conforming to ANSI B16.10 face to face dimensions. Temperature, Vacuum & Certifications: The temperature range is -20°C to +160°C, with vacuum capability as 10⁻³ torr. Certification availability includes TUV SIL 3, Fire-Safe acc. EN ISO 10497 / API 607 and F.E. Tested ISO15848-1, subject to selected configuration and verification at quotation. With over 30 years’ experience and an ISO 9001:2015 certified quality management system, Ultravalve provides dependable valve solutions for UK industry. The Series 761030 stainless steel split-body full bore ball valve is available to order, with delivery options confirmed at quotation. Contact our team for technical advice, current availability or to request a quote.
