760801

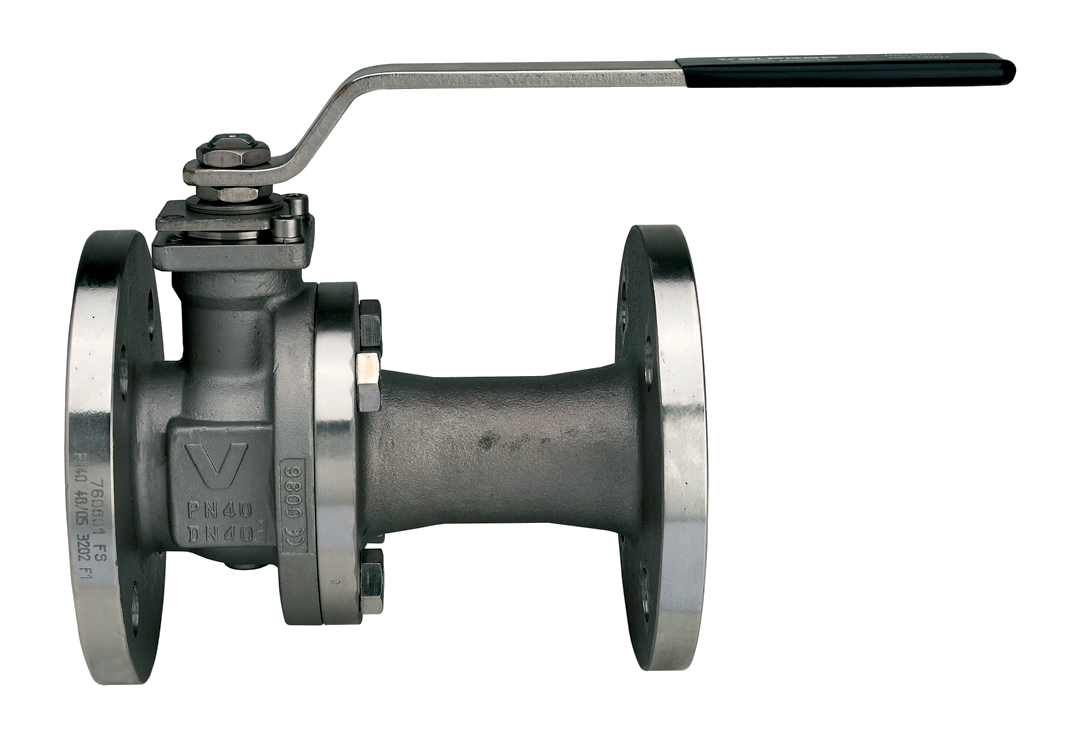

Series 760801 Stainless Steel Split-Body Full Bore Ball Valve Ultravalve supplies the Series 760801 split-body full bore stainless steel ball valve for reliable manual on/off flow isolation in industrial flanged pipework systems. Manufactured with a 1.4408 / A351-CF8M stainless steel body and end connection, A479-TP316 / A351-CF8M ball, PTFE seats, Fire-Safe construction and an antistatic device, the Series 760801 is designed for compatible general fluid handling, chemical, process and plant maintenance applications when correctly specified and installed. Dependable Full Bore Isolation for EN 558 Series 1 Systems Ultravalve’s Midlands based warehouse offers a wide range of flanged split-body ball valves from stock, subject to configuration and current availability. Designed to support process maintenance and industrial pipework upgrades, these valves help provide dependable replacement options for full bore flanged isolation requirements. Full Bore Performance: The full bore design helps support high flow capacity and reduced restriction across compatible industrial pipelines. Robust Stainless Steel Construction: Manufactured with a 1.4408 / A351-CF8M stainless steel body and end connection, A479-TP316 / A351-CF8M ball, A479-TP316 / 17-4-PH stem, PTFE seats, FKM O-rings and Graphoil sealing. Fire-Safe & Antistatic Design: Features Fire-Safe construction and an antistatic device for correctly specified industrial and critical-service applications. Defined Pressure & Size Range: Available from DN15 to DN100, with pressure ratings dependent on valve size. DN15, DN20, DN25, DN32, DN40 and DN50 are PN40, while DN65, DN80 and DN100 are PN16. Flanged Installation Standard: Supplied as a flanged valve conforming to EN 558 basic series 1 face to face dimensions. Temperature, Vacuum & Certifications: The temperature range is -20°C to +160°C, with vacuum capability as 10⁻³ torr. Certification availability includes TUV SIL 3, Fire-Safe acc. EN ISO 10497 / API 607 and F.E. Tested ISO15848-1, subject to selected configuration and verification at quotation. Configuration Options: V-ball, V-pack and low temperature design options are available subject to selected configuration and technical confirmation. With over 30 years’ experience and an ISO 9001:2015 certified quality management system, Ultravalve provides dependable valve solutions for UK industry. The Series 760801 stainless steel split-body full bore ball valve is available to order, with delivery options confirmed at quotation. Contact our team for technical advice, current availability or to request a quote.
