760200

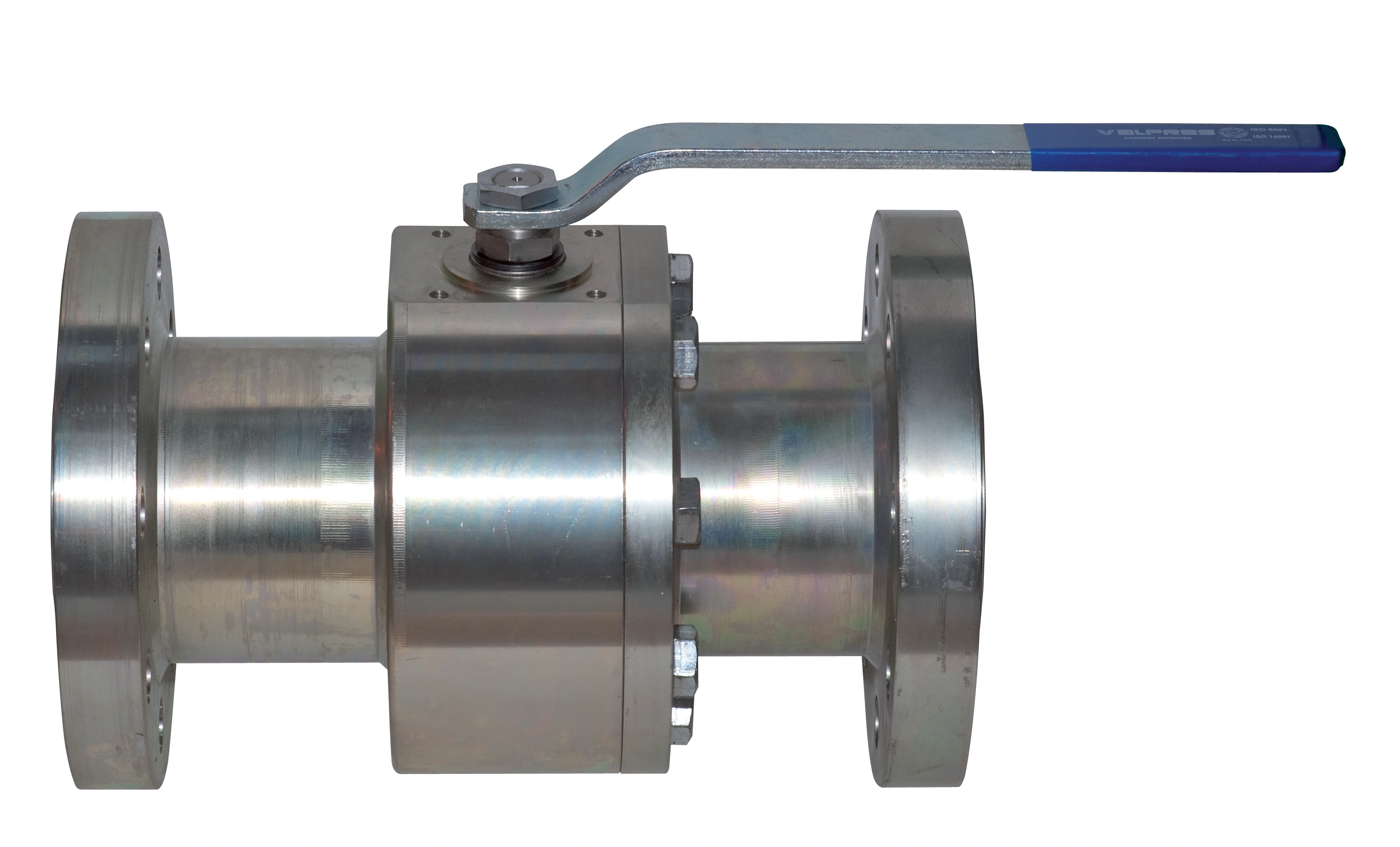

Series 760200 Stainless Steel Split-Body Full Bore Ball Valve Ultravalve supplies the Series 760200 split-body full bore stainless steel ball valve for reliable manual on/off flow isolation in demanding ANSI 600 industrial systems. Manufactured with A479-316/316L stainless steel body components, an A479-TP316 / A351-CF8M ball, metal core PTFE ball seats, Fire-Safe construction and an antistatic device, the Series 760200 is designed for compatible high pressure general fluid handling, chemical, process and plant maintenance applications when correctly specified and installed. Dependable ANSI 600 Full Bore Isolation for Process Systems Ultravalve’s Midlands based warehouse offers a wide range of ANSI 600 flanged ball valves from stock, subject to configuration and current availability. Designed to support heavy duty process maintenance and industrial pipework projects, these valves help provide robust replacement options for full bore high-pressure isolation requirements. Full Bore Performance: The full bore design helps support high flow capacity and reduced restriction across compatible industrial pipelines. Robust Stainless Steel Construction: Manufactured with A479-316/316L body and end connection materials, A479-TP316 / A351-CF8M ball, A479-TP316 / 17-4-PH stem, FKM O-rings, Graphoil stem sealing and PTFE body seating. Metal Core PTFE Ball Seats: Uses PTFE + MET/RPTFE ball seats to support dependable sealing in correctly specified high pressure applications. Fire-Safe & Antistatic Design: Features Fire Safe construction and an antistatic device for correctly specified industrial and critical-service applications. Defined Pressure & Size Range: Available in DN15, DN20, DN25, DN40, DN50, DN80 and DN100, with a PN100 / ANSI 600 pressure rating across the full size range. Flanged Installation Standard: Supplied as a flanged valve conforming to ANSI B16.10 face to face dimensions. Temperature, Vacuum & Certifications: The temperature range is -20°C to +160°C, with vacuum capability as 10⁻³ torr. Certification availability includes TUV SIL 3, Fire-Safe acc. EN ISO 10497 / API 607 and F.E. Tested ISO15848-1, subject to selected configuration and verification at quotation. With over 30 years’ experience and an ISO 9001:2015 certified quality management system, Ultravalve provides dependable valve solutions for UK industry. The Series 760200 stainless steel split-body full bore ball valve is available to order, with delivery options confirmed at quotation. Contact our team for technical advice, current availability or to request a quote.
