760150

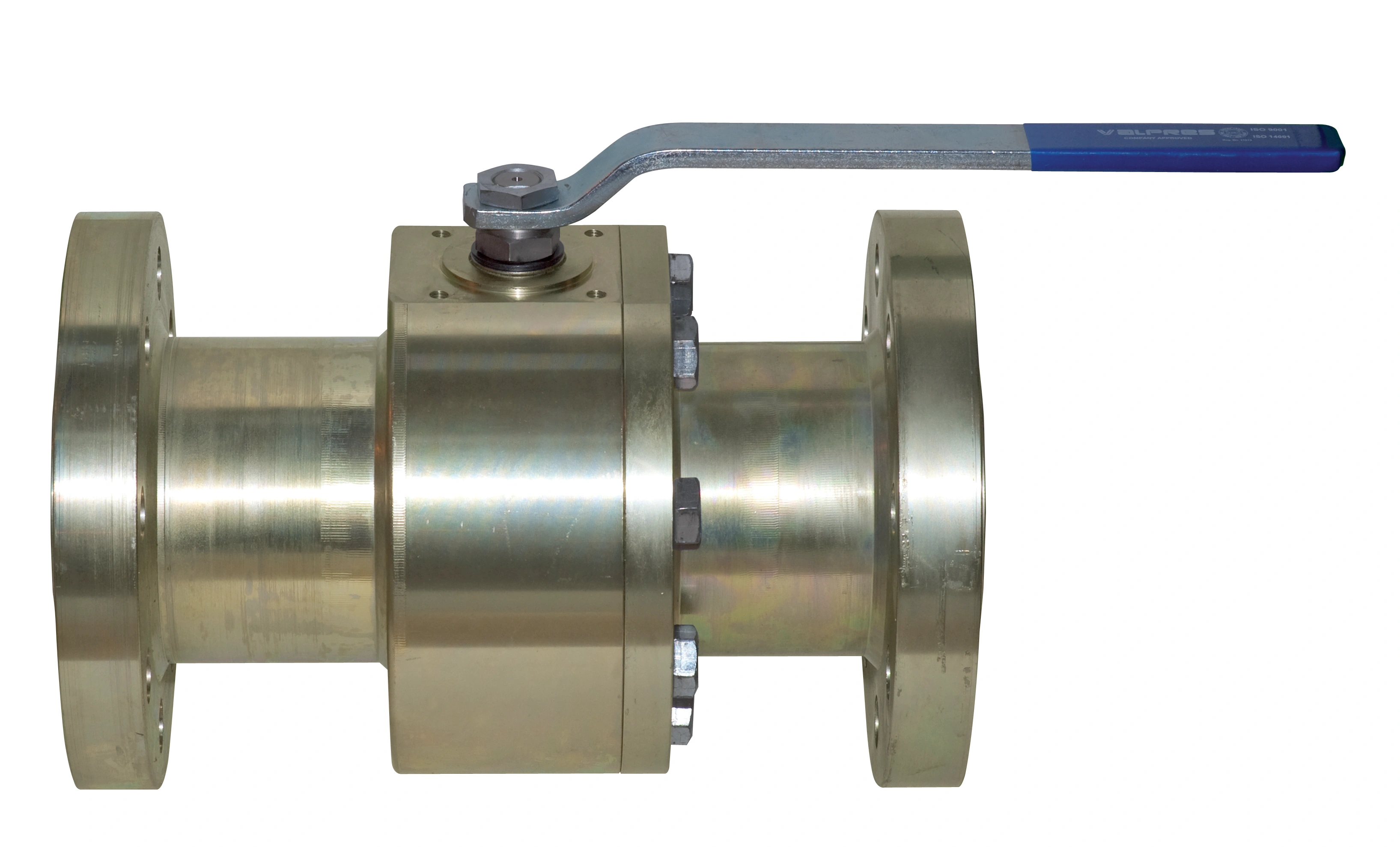

Series 760150 Carbon Steel Split-Body Full Bore Ball Valve Ultravalve supplies the Series 760150 split-body full bore carbon steel ball valve for reliable manual on/off flow isolation in demanding ANSI 600 industrial systems. Manufactured with zinc-plated / painted A350-LF2 carbon steel body components, an A479-TP304 / A351-CF8 ball, metal core PTFE ball seats, Fire-Safe construction and an antistatic device, the Series 760150 is designed for compatible high pressure general fluid handling, processing and plant maintenance applications when correctly specified and installed. Dependable ANSI 600 Full Bore Isolation for Process Systems Ultravalve’s Midlands based warehouse offers a wide range of ANSI 600 flanged ball valves from stock, subject to configuration and current availability. Designed to support heavy duty process maintenance and industrial pipework projects, these valves help provide robust replacement options for full bore high-pressure isolation requirements. Full Bore Performance: The full bore design helps support high flow capacity and reduced restriction across compatible industrial pipelines. Robust Carbon Steel Construction: Manufactured with A350-LF2 body and end connection materials, A479-TP304 / A351-CF8 ball, A479-TP304 / 17-4-PH stem, FKM O-rings, Graphoil stem sealing and PTFE body seating. Metal Core PTFE Ball Seats: Uses PTFE + MET/RPTFE ball seats to support dependable sealing in correctly specified high pressure applications. Fire-Safe & Antistatic Design: Features Fire-Safe construction and an antistatic device for correctly specified industrial and critical-service applications. Defined Pressure & Size Range: Available in DN15, DN20, DN25, DN40, DN50, DN80 and DN100, with a PN100 / ANSI 600 pressure rating across the full size range. Flanged Installation Standard: Supplied as a flanged valve conforming to ANSI B16.10 face to face dimensions. Temperature, Vacuum & Certifications: The temperature range is -20°C to +160°C, with vacuum capability as 10⁻³ torr. Certification availability includes TUV SIL 3 and Fire-Safe acc. EN ISO 10497 / API 607, subject to selected configuration and verification at quotation. With over 30 years’ experience and an ISO 9001:2015 certified quality management system, Ultravalve provides dependable valve solutions for UK industry. The Series 760150 carbon steel split-body full bore ball valve is available to order, with delivery options confirmed at quotation. Contact our team for technical advice, current availability or to request a quote.
