725000

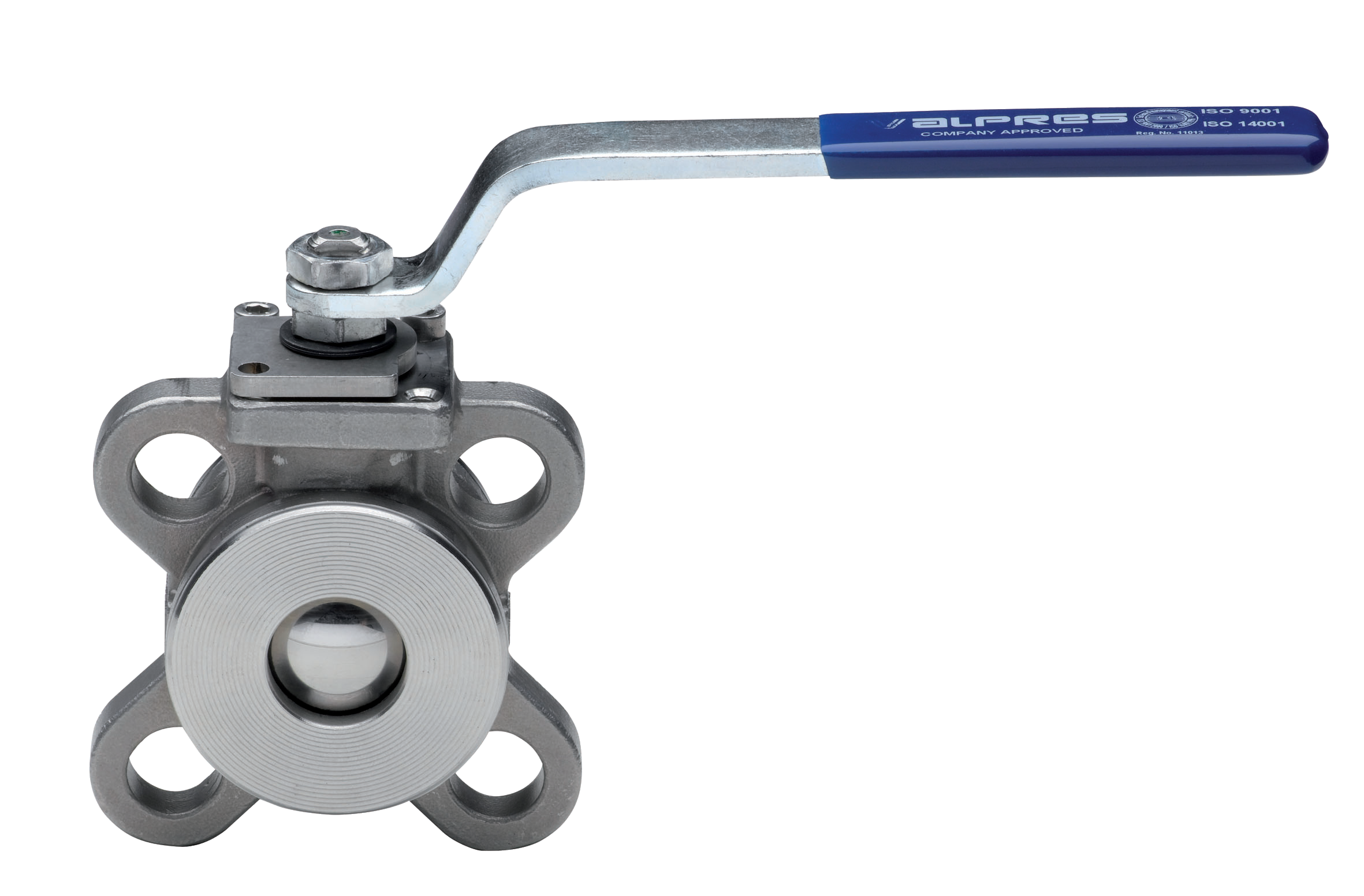

Series 725000 Economy Wafer Pattern Full Bore Stainless Steel Ball Valve Ultravalve supplies the Series 725000 economy wafer pattern full bore stainless steel ball valve for reliable flow isolation in compact flanged pipework systems. Manufactured with an A351-CF8M stainless steel body, A182-F316 end connection, A479-TP316 / A351-CF8M ball, PTFE seats and an antistatic device, the Series 725000 is designed for compatible general fluid handling, plant maintenance and industrial isolation applications when correctly specified and installed. Dependable Economy Wafer Isolation for Process Networks Ultravalve’s Midlands based warehouse offers a wide range of economy stainless steel wafer valves from stock, subject to configuration and current availability. Designed to support maintenance upgrades and general pipework projects, these valves help provide compact replacement options for flanged isolation requirements. Space Saving Wafer Design: The compact wafer pattern body supports installation between compatible PN10, PN16, PN40 and ANSI 150 flanged pipework, depending on valve size. Full Bore Flow: The full bore internal design helps support high flow capacity and reduced restriction across compatible industrial pipelines. Economy Stainless Steel Construction: Manufactured with an A351-CF8M stainless steel body, A182-F316 end connection, A479-TP316 / A351-CF8M ball, PTFE seats, FKM O-rings and A479-TP316 / 17-4-PH stem. Antistatic Device: Features an antistatic device for applications requiring controlled static discharge when correctly specified. Defined Pressure & Size Range: Available from DN25 to DN100, with pressure ratings dependent on valve size. DN25, DN32, DN40 and DN50 are PN40, while DN65, DN80 and DN100 are PN20. Temperature & Vacuum Capability: The temperature range is -20°C to +160°C, with vacuum capability as 10⁻³ torr. Options & Certifications: V-ball options are available, except for the 4" / DN100 size. Certification availability includes TUV SIL 3 and ATEX, subject to selected configuration and verification at quotation. With over 30 years’ experience and an ISO 9001:2015 certified quality management system, Ultravalve provides dependable valve solutions for UK industry. The Series 725000 economy stainless steel wafer pattern ball valve is available to order, with delivery options confirmed at quotation. Contact our team for technical advice, current availability or to request a quote.
