720650

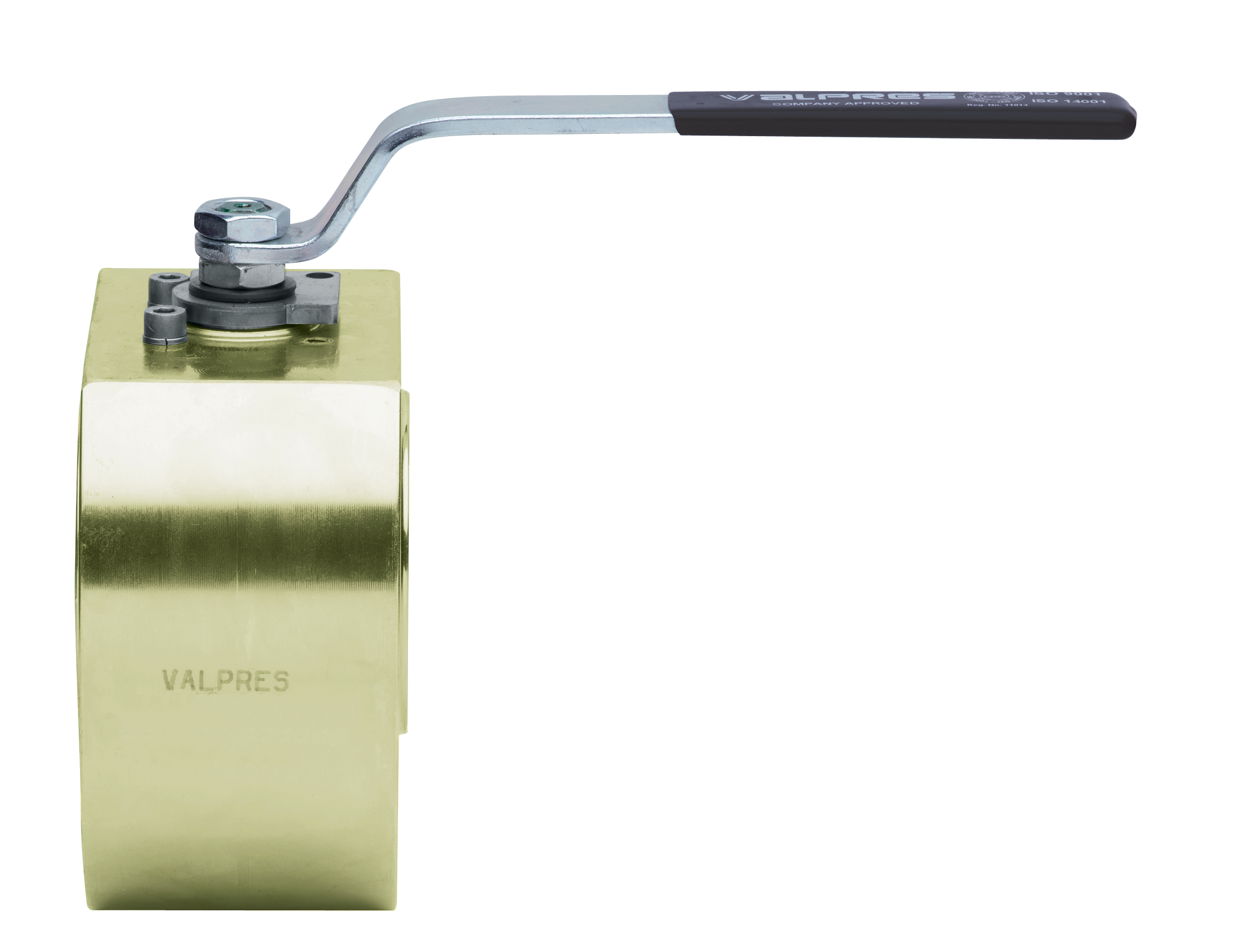

Series 720650 Wafer Pattern Full Bore Carbon Steel Ball Valve Ultravalve supplies the Series 720650 wafer pattern full bore flanged ball valve for reliable industrial flow isolation in compact PN63 pipework systems. Manufactured with zinc-plated A350-LF2 carbon steel body components, an A351-CF8 / A479-TP304 ball, glass filled PTFE ball seats and an antistatic device, the Series 720650 is designed for compatible process, plant maintenance and general fluid handling applications when correctly specified and installed. Dependable Carbon Steel Wafer Isolation for PN63 Systems Ultravalve’s Midlands based warehouse offers a wide range of carbon steel wafer ball valves from stock, subject to configuration and current availability. Designed to support maintenance upgrades and compact flanged installations, these valves help provide dependable isolation where reduced face to face dimensions, PN63 pressure rating and antistatic design are required. Wafer Pattern Design: The compact wafer pattern body supports space-saving installation between compatible PN63 flanged pipework. Full Bore Flow: The full bore internal design helps support high flow capacity and reduced restriction across compatible industrial pipelines. Robust Carbon Steel Construction: Manufactured with zinc-plated A350-LF2 body and end connection materials, an A351-CF8 / A479-TP304 ball, glass filled PTFE ball seats, FKM O-rings and A479-TP316 / 17-4-PH stem. Antistatic & Automation-Ready Design: Features an antistatic device and a mounting interface for compatible automation equipment when correctly specified. Defined Pressure & Size Range: Available from DN15 to DN100, with a PN63 pressure rating across the size range. Temperature, Vacuum & Certifications: The temperature range is -20°C to +160°C, with vacuum capability as 10⁻³ torr. Certification availability includes TUV, ATEX, SIL 3 and F.E. Tested ISO15848-1, subject to selected configuration and verification at quotation. With over 30 years’ experience and an ISO 9001:2015 certified quality management system, Ultravalve provides dependable valve solutions for UK industry. The Series 720650 carbon steel wafer pattern ball valve is available to order, with delivery options confirmed at quotation. Contact our team for technical advice, current availability or to request a quote.
