720302

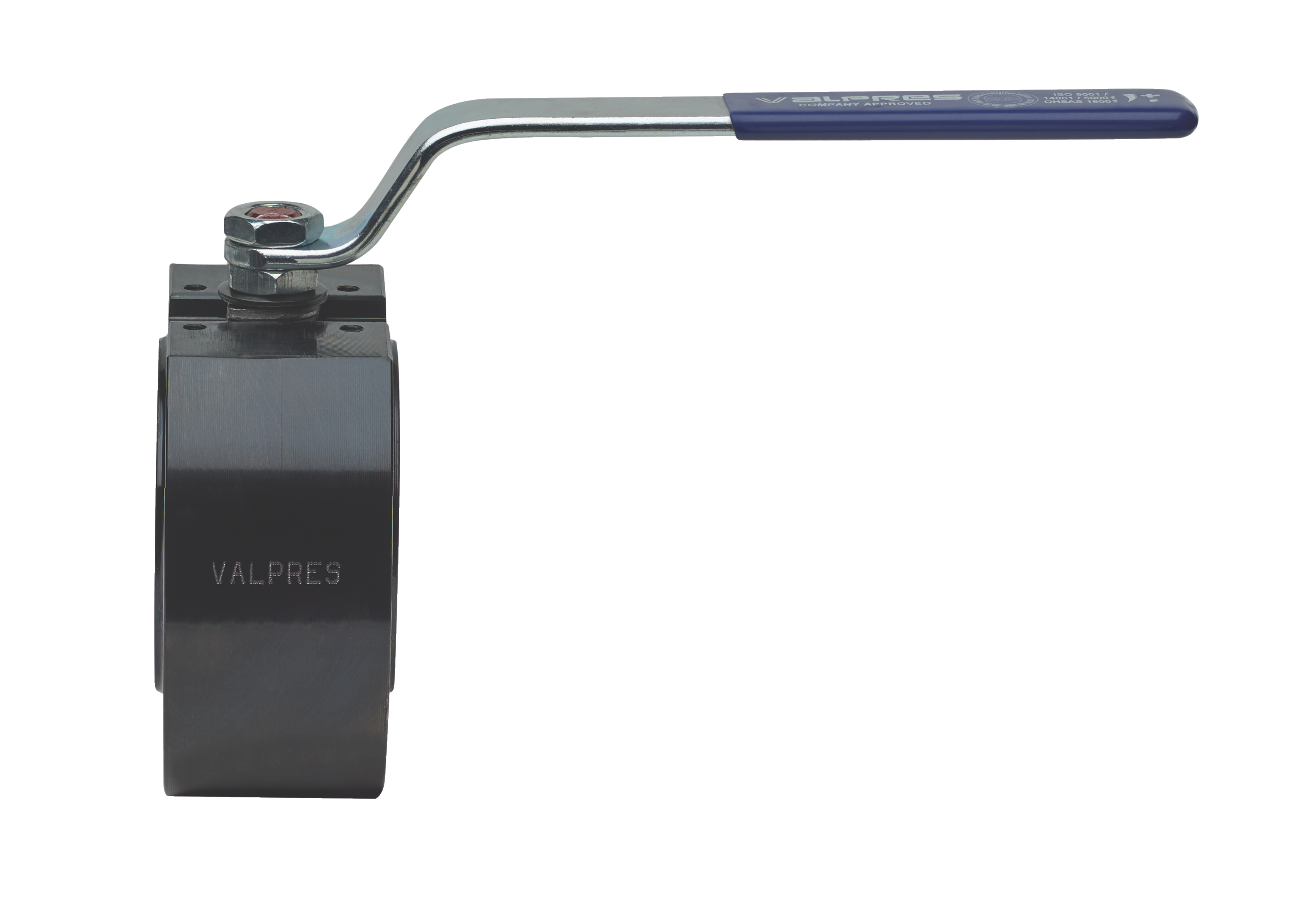

Series 720302 Wafer Pattern Full Bore Carbon Steel Steam Ball Valve Ultravalve supplies the Series 720302 wafer pattern full bore flanged ball valve for reliable isolation in compact steam and high temperature pipework systems. Manufactured with blued ASTM-A105 / LF2 carbon steel body components, PTFE + Carbografite seating, an antistatic device and fire-safe construction, the Series 720302 is designed for compatible steam, process, plant maintenance and general industrial fluid handling applications when correctly specified and installed. Dependable Carbon Steel Wafer Isolation for Steam Systems Ultravalve’s Midlands based warehouse offers a wide range of carbon steel wafer ball valves from stock, subject to configuration and current availability. Designed to support maintenance upgrades and compact flanged installations, these valves help provide dependable isolation where PN16 rating, steam suitability and reduced face to face dimensions are required. Space-Saving Wafer Design: The compact wafer pattern body supports installation between compatible PN16 flanged pipework. Steam Pressure & Temperature: Suitable for steam service up to a maximum working pressure of 15 bar, corresponding to a steam temperature of 198°C. Steam-Suitable Carbon Steel Construction: Manufactured with ASTM-A105 / LF2 body and end connection materials, an A351-CF8 / A479-TP304 ball, FKM O-rings, and PTFE + Carbografite ball seats, thrust washer and stem seat. Full Bore Flow: The full bore internal design helps support high flow capacity and reduced restriction across compatible industrial pipelines. Fire-Safe, Antistatic & Certification Coverage: Features an antistatic device and fire-safe construction, with TUV, Fire-Safe, ATEX BS6755-2 and F.E. Tested ISO15848-1 certification coverage, subject to selected configuration and verification at quotation. Defined Pressure & Size Range: Available from DN15 to DN150, with a PN16 pressure rating across the size range. With over 30 years’ experience and an ISO 9001:2015 certified quality management system, Ultravalve provides dependable valve solutions for UK industry. The Series 720302 carbon steel wafer pattern steam ball valve is available to order, with delivery options confirmed at quotation. Contact our team for technical advice, current availability or to request a quote.
