720212

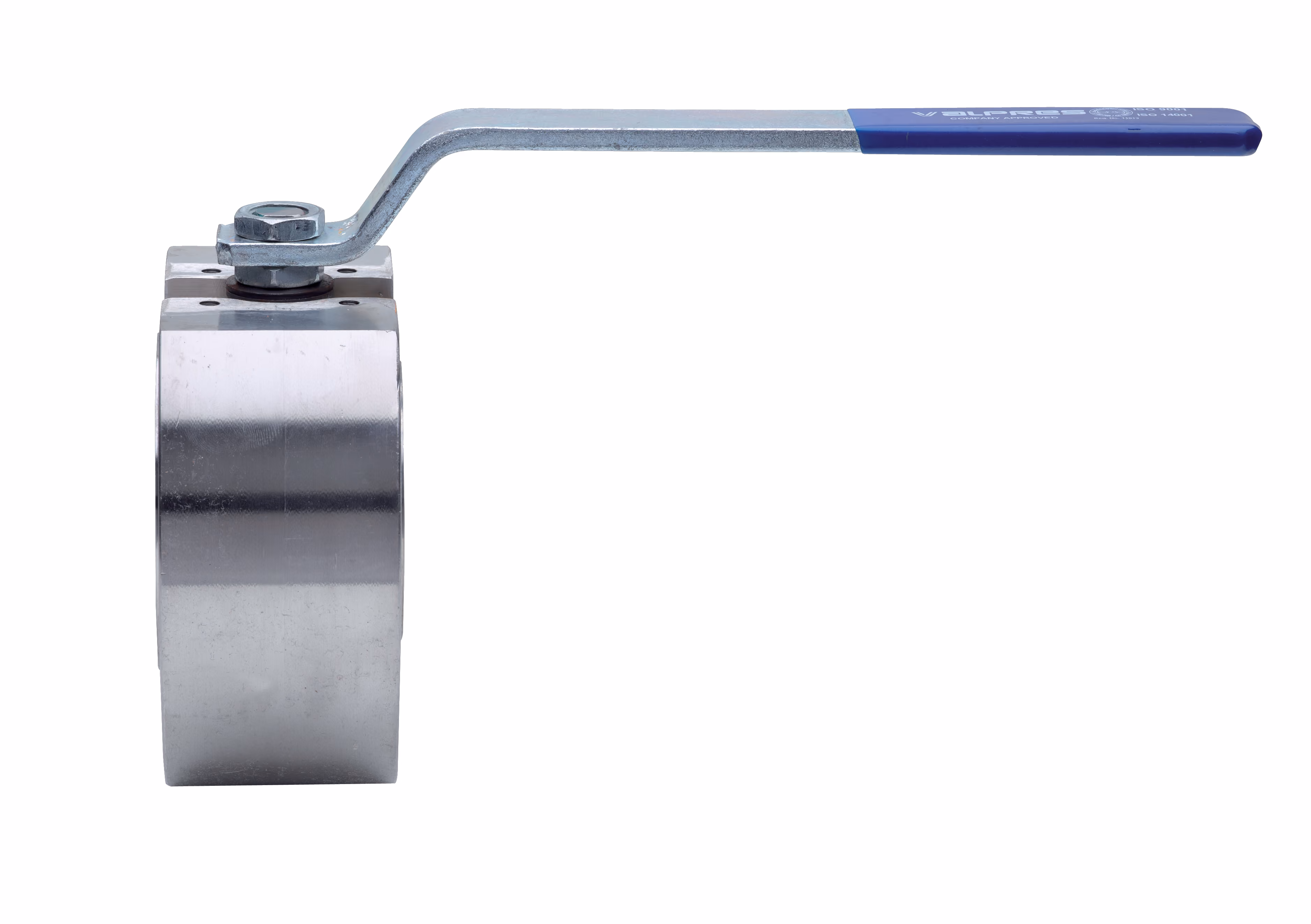

Series 720212 Wafer Pattern Full Bore Stainless Steel Ball Valve Ultravalve supplies the Series 720212 wafer pattern full bore flanged ball valve for reliable industrial flow isolation in compact ANSI 300 pipework systems. Manufactured with A479 316/316L / A351-CF8M stainless steel body material, A479-316/316L end connection, A479-TP316 / A351-CF8M ball and glass filled PTFE ball seats, the Series 720212 is designed for compatible process, plant maintenance, water, chemical and general fluid handling applications when correctly specified and installed. Dependable Stainless Steel Wafer Isolation for ANSI 300 Systems Ultravalve’s Midlands based warehouse offers a wide range of stainless steel wafer ball valves from stock, subject to configuration and current availability. Designed to support maintenance upgrades and compact flanged installations, these valves help provide dependable isolation where reduced face to face dimensions and ANSI 300 compatibility are required. Wafer Pattern Design: The compact wafer pattern body supports space saving installation between compatible ANSI 300 flanged pipework. Full Bore Flow: The full bore internal design helps support high flow capacity and reduced restriction across compatible industrial pipelines. Robust Stainless Steel Construction: Manufactured with A479 316/316L / A351-CF8M body material, A479-316/316L end connection, A479-TP316 / A351-CF8M ball, glass filled PTFE ball seats, FKM O-rings and A479-TP316 / 17-4-PH stem. Defined Pressure & Size Range: Available from DN15 to DN150, with a PN50 / ANSI 300 pressure rating across the size range. Temperature & Vacuum Capability: The temperature range is -20°C to +160°C, with vacuum capability as 10⁻³ torr. Options & Certifications: V-ball and low temperature design options are available subject to configuration. Certification availability includes TUV, SIL 3, ATEX / Fire-Safe on request and F.E. Tested ISO15848-1, subject to selected configuration and verification at quotation. With over 30 years’ experience and an ISO 9001:2015 certified quality management system, Ultravalve provides dependable valve solutions for UK industry. The Series 720212 stainless steel wafer pattern ball valve is available to order, with delivery options confirmed at quotation. Contact our team for technical advice, current availability or to request a quote.
