Pneumatically Actuated Valves
Description
Ultravalve supplies pneumatically actuated valves, combining pneumatic actuators with quarter-turn valves to provide fast, reliable and repeatable automated flow control.
These assemblies are suitable for industrial processes where compressed air is available and dependable valve movement is required. Pneumatically actuated valves are commonly used for isolation, shut-off, diversion and process control duties across manufacturing, water treatment, chemical, pharmaceutical, food and beverage, utilities and OEM applications.
Complete Valve Automation Solutions

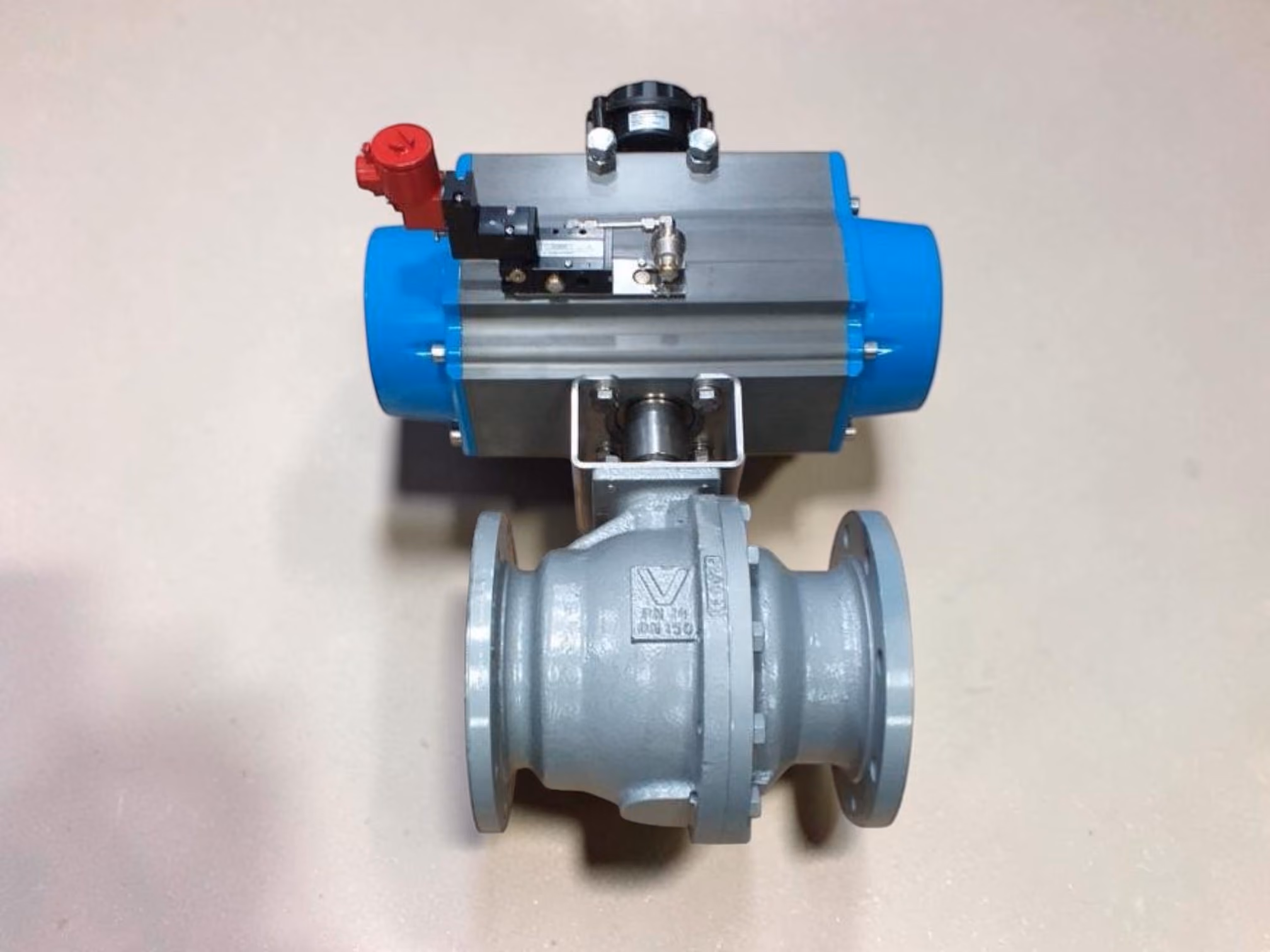

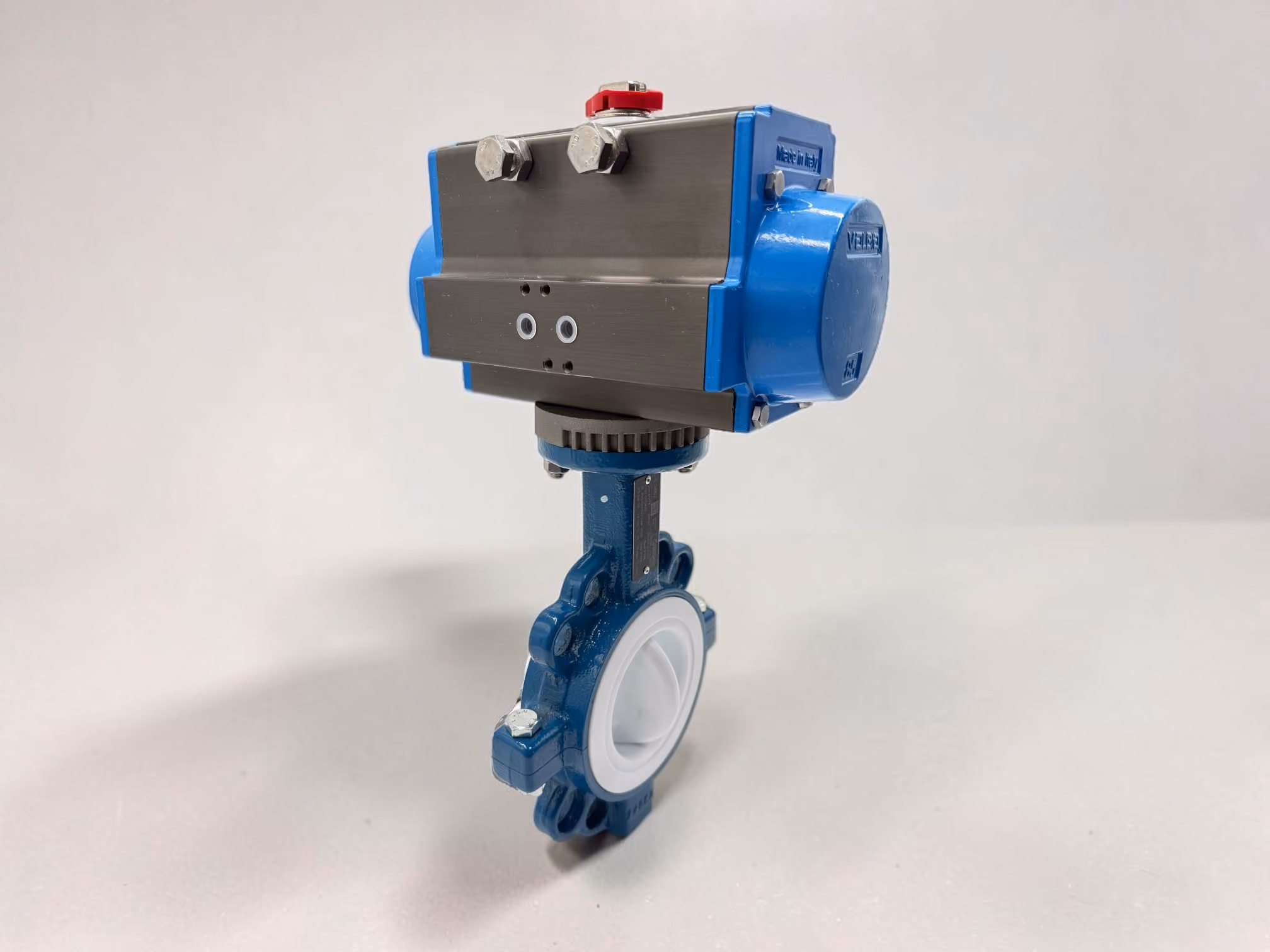

Available from UK stock, Ultravalve’s pneumatically actuated valve packages provide a complete, ready-to-install solution for automated flow control. Assemblies include ball valves and butterfly valves across a broad range of sizes, offering flexibility for different pipeline requirements and operating conditions.
Valbia pneumatic actuators are available in double acting and spring return configurations, allowing actuated valve assemblies to be matched to the required operating sequence and fail-safe position. The actuator range includes aluminium and stainless steel options, with standard 0°–90° rotation and 0°–180° options available for selected applications.
Ultravalve can supply complete actuated valve packages using ball valves, butterfly valves and other compatible quarter-turn valve types.
Key Benefits
Integrated Valve and Actuator Packages
Supplied as complete assemblies, pneumatically actuated valves reduce installation time and ensure compatibility between actuator and valve components.
Wide Range of Valve Options
Available with ball valves and butterfly valves in sizes typically ranging from DN15 to DN300, supporting a variety of flow control applications.
Reliable Pneumatic Actuation
Actuators utilise a rack and pinion design to deliver consistent torque output, ensuring dependable valve operation over repeated cycles.
Simple Installation with ISO Mounting
ISO 5211 direct mount interfaces allow straightforward integration into existing systems without the need for additional brackets or modifications.
ATEX Options Available
ATEX-certified actuator configurations are available for use in hazardous environments, supporting compliance with explosive atmosphere requirements.
Durable Construction for Industrial Use
Actuator bodies feature hard-coat anodised aluminium construction, providing strong resistance to corrosion and wear in demanding environments.
Flexible Configuration
Available in double-acting and spring-return configurations, with a range of accessories including solenoids, limit switches and positioners.
NAMUR and ISO Mounting Compatibility
Valbia pneumatic actuators feature NAMUR connections for accessories and ISO 5211-DIN 3337 valve mounting for straightforward integration.
Applications for Pneumatically Actuated Valves
Pneumatically actuated valves are suitable for:
• Process automation
• Water treatment and utilities
• Food and beverage production
• Chemical processing
• Pharmaceutical systems
• Manufacturing machinery
• Automated shut-off systems
• Plant rooms and industrial services
Designed for Industrial Performance
Each pneumatically actuated valve is assembled, tested and configured to meet application requirements, ensuring reliable performance in both general industrial and hazardous environments. Standardised mounting and robust construction help maintain long service life and consistent operation.
With over 30 years’ experience and ISO 9001:2015 quality accreditation, Ultravalve delivers dependable valve automation solutions supported by UK stock, technical expertise and fast turnaround times. Contact our team to discuss your application.
Q&A
What is a pneumatically actuated valve?
A pneumatically actuated valve is a valve operated by a pneumatic actuator using compressed air. It allows the valve to open, close or control flow automatically.
What is the difference between spring return and double acting actuated valves?
A double acting valve assembly uses air to move the actuator in both directions. A spring return assembly uses air to move the valve one way and springs to return it to a safe position.
Can pneumatically actuated valves include position feedback?
Yes. Limit switch boxes can be fitted to provide open and closed position feedback for monitoring and control systems.
Are pneumatically actuated valves suitable for hazardous areas?
Selected pneumatic actuator options are available with ATEX certification for hazardous environments. The suitability depends on the full valve package and installation requirements.
