IP67 Electric Actuators
Description
Ultravalve supplies a wide range of electric actuators including the Valbia IP67 electric actuators for reliable quarter-turn valve automation across industrial, process and building services applications.

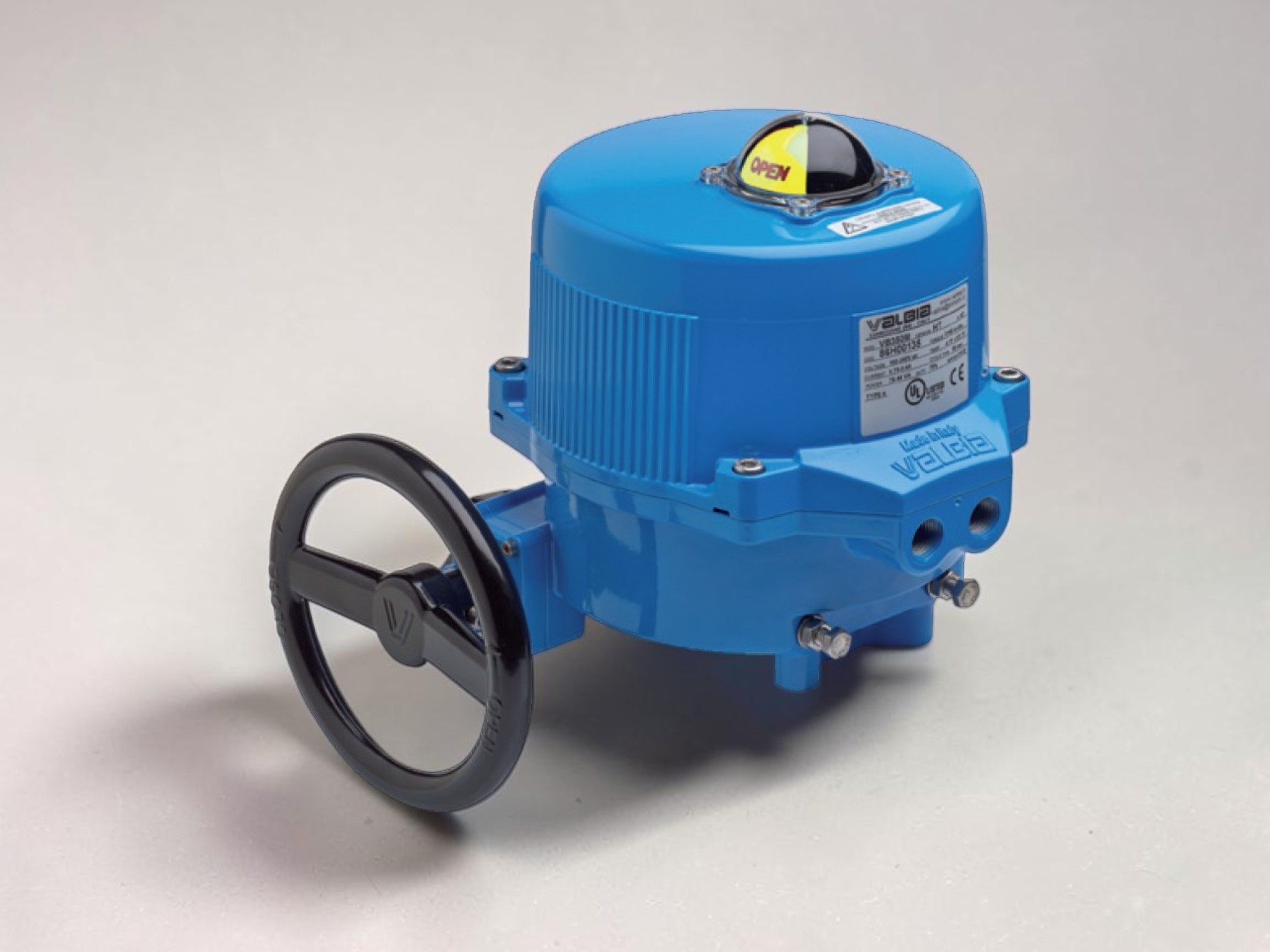

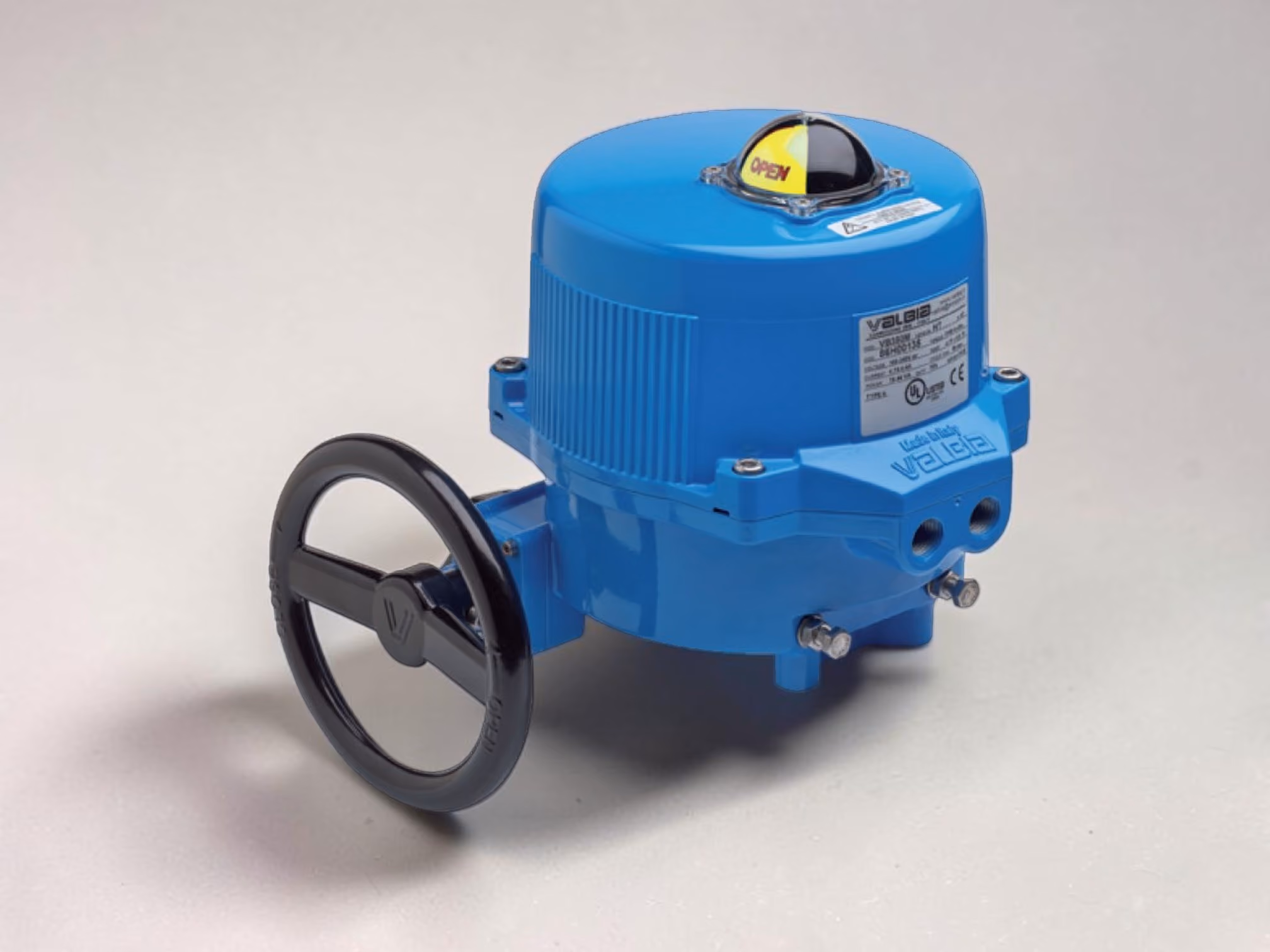

The Valbia electric actuator range includes Series 85 and Series 86 models, designed for the automation of ball valves and butterfly valves. With torque outputs from 15 Nm to 350 Nm, multiple voltage options and integrated electronic control, these actuators provide a dependable solution for applications where precise electric valve operation is required.
Electric Actuators for Reliable Valve Automation
Electric actuators are often selected where compressed air is not available, where electrical control is preferred, or where the system requires additional control and feedback options.
Valbia electric actuators are available with 12V, 24V and 100–240V power supply options, helping to simplify specification across different installations. The range also includes on/off, modulating, potentiometer feedback, battery backup and intermediate position versions, depending on model and application requirement.
Key Benefits
Multi-Voltage Flexibility
Supports 12–24V AC/DC and 100–240V AC power supplies, allowing use across a wide range of installations without additional transformers.
Integrated Electronic Torque Control
Built-in torque limiter protects the actuator and valve from overload, automatically adjusting to mechanical resistance.
IP67 Protection (IP65 VB015)
Weatherproof enclosure protects internal components from dust and water ingress, supporting reliable operation in industrial environments.
Consistent Operating Performance
Electronic control adjusts motor speed based on load, ensuring consistent cycle times and smooth valve movement.
Wide Torque Range
Available from 15 Nm to 350 Nm across the VB actuator series, suitable for a variety of valve sizes and applications.
Simple Installation with ISO Mounting
ISO 5211-DIN 3337 mounting interface allows direct installation onto valves without additional brackets or modifications.
Programmable and Configurable Options
Models (excluding VB015) can be configured with positioners (4–20 mA / 0–10V), potentiometers or battery backup for enhanced control and monitoring.
Manual Override and Heater as Standard
Integrated manual override and anti-condensation heater ensure usability and reliability in varying operating conditions.
IP67 Protection
Most Valbia Series 85 electric actuators are rated to IP67, with the VB015 rated to IP65. This supports reliable operation in environments where dust and water ingress protection is required.

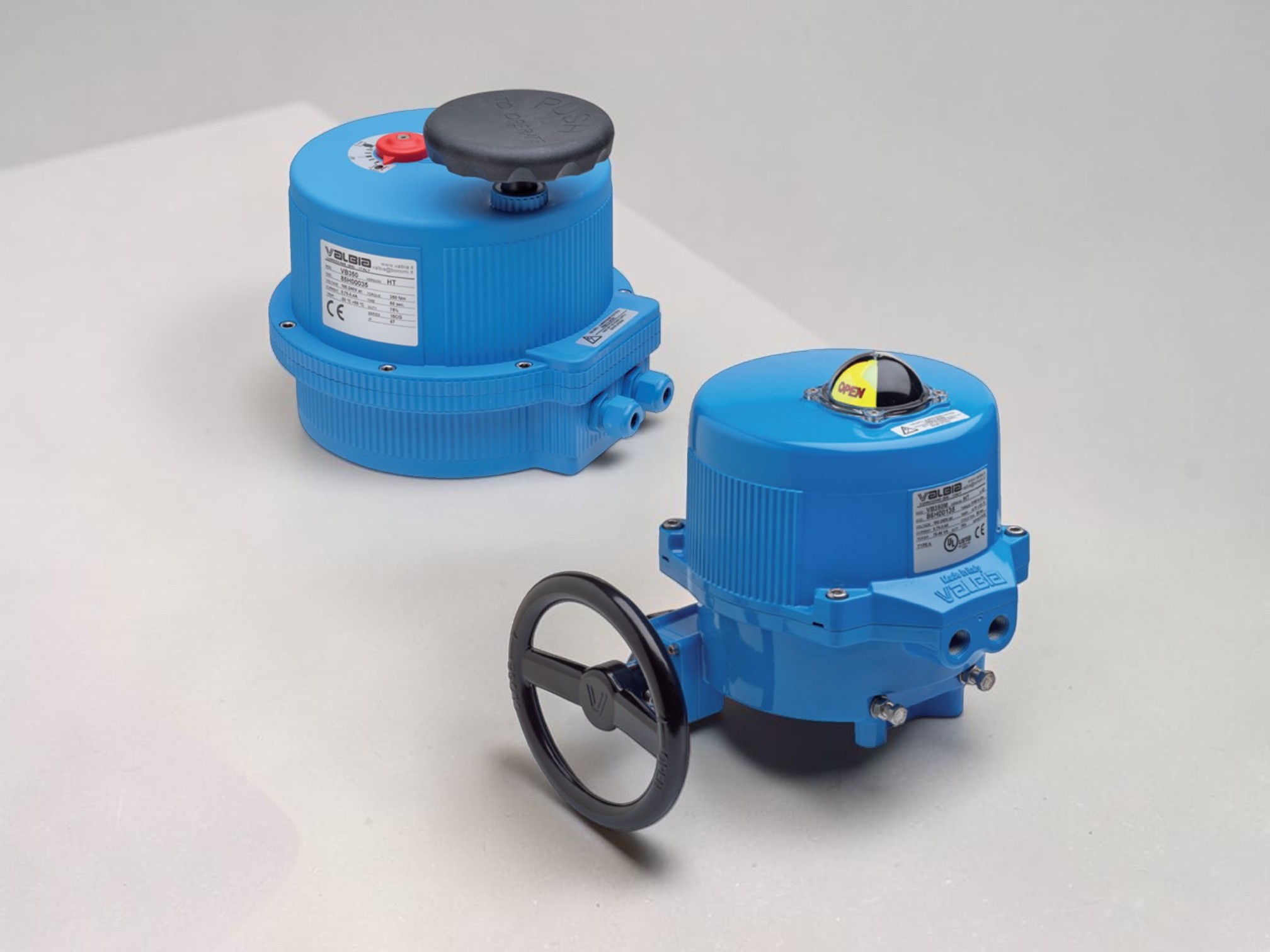

Series 85 and Series 86 Electric Actuators
The Series 85 features a self-extinguishing technopolymer enclosure, while the Series 86 uses a die-cast aluminium enclosure with polyester powder coating. This allows users to select the most suitable actuator housing for their application and operating environment.
Designed for Performance and Reliability
Constructed with durable materials including die-cast aluminium and high-performance techno-polymers, these actuators are engineered for long-term use. Internal components such as hardened steel pinions and self-lubricating bushes reduce wear and ensure smooth, efficient operation over time.
With over 30 years’ experience and ISO 9001:2015 accreditation, Ultravalve supplies reliable valve automation solutions backed by UK stock availability and technical support. Contact our team to discuss your electric actuator requirements.
Q&A
What are IP67 electric actuators used for?
IP67 electric actuators are used to automate quarter-turn valves, such as ball valves and butterfly valves, in industrial and building services systems.
Can Valbia electric actuators be used formodulating control?
Yes. Selected Valbia electric actuator models can be supplied with positioner options for 4–20 mA or 0–10V control.
What torque range is available?
Valbiaelectric actuators are available with torque outputs from 15 Nm to 350 Nm.
Do electric actuators have manual override?
Yes. Valbia electric actuators include manual override, allowing operation of the actuator when required.
